Western Air Patrol 11M3C
Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 278036

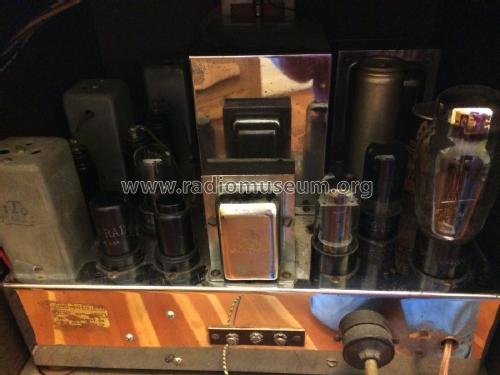

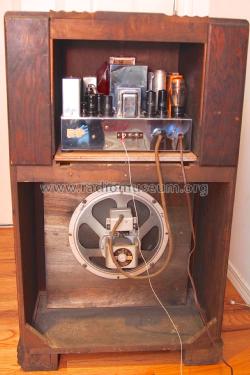

Speaker cover removed.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 50 to 60 Hz, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Western Air Patrol 11M3C - Western Auto Supply of
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22.5 x 38.5 x 14 inch / 572 x 978 x 356 mm
- Notes
-
The Western Air Patrol 11M3C is an AC operated 11 tube BC and SW band receiver.

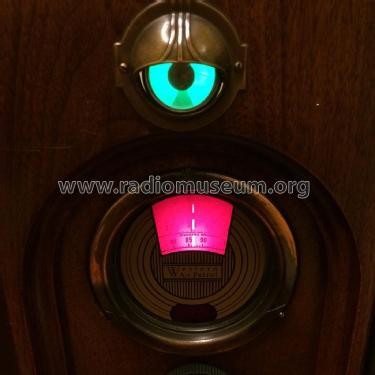

Some of these receivers have a tuning eye tube, which were most probably added after production.
This model shares its chassis with the Gilfillan 117X, with the exception of using a UX-base 80 rectifier instead of the Loctal-base 5Z4 shown on the schematic at Riders pg. Gilfillan 6-6.
- Net weight (2.2 lb = 1 kg)
- 80 lb (80 lb 0 oz) / 36.320 kg
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (Riders Vol. 6, pg. Gilfillan 6-6)
- Author
- Model page created by Steve Dymale. See "Data change" for further contributors.
- Other Models
-
Here you find 72 models, 26 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Western Auto Supply of California Co. (Western Air Patrol, Wizard); Los Angeles, CA
Collections
