• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156139

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / mains117; Batt. 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

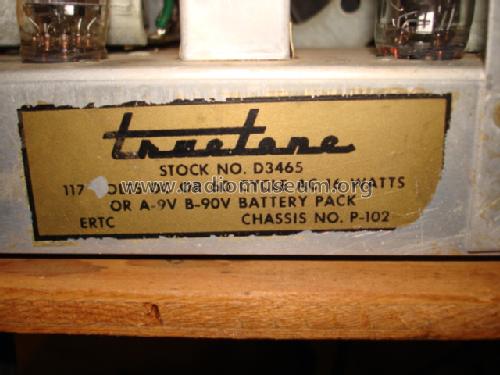

• Model: D-3465 Truetone Ch= P-102 - Western Auto Supply Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 270 x 145 mm / 11.4 x 10.6 x 5.7 inch

• Notes
• Difference to D-3465A not clear.

• Author
• Model page created by Hans De Seijn. See "Data change" for further contributors.
