14-A Loud Speaker w. Amp.

14-A Loud Speaker w. Amp.; Western Electric (ID = 2048938) Speaker-P 14-A Loud Speaker w. Amp.; Western Electric (ID = 2048939) Speaker-P
14-A Loud Speaker w. Amp.; Western Electric (ID = 2048940) Speaker-P 14-A Loud Speaker w. Amp.; Western Electric (ID = 2048942) Speaker-P
14-A Loud Speaker w. Amp.; Western Electric (ID = 2048943) Speaker-P 14-A Loud Speaker w. Amp.; Western Electric (ID = 2048944) Speaker-P
14-A Loud Speaker w. Amp.; Western Electric (ID = 2048945) Speaker-P 14-A Loud Speaker w. Amp.; Western Electric (ID = 2048946) Speaker-P
14-A Loud Speaker w. Amp.; Western Electric (ID = 1578309) Speaker-P 14-A Loud Speaker w. Amp.; Western Electric (ID = 695018) Speaker-P
Use red slider bar for more.
14-A Loud Speaker w. Amp.; Western Electric (ID = 2048938) Speaker-P
Western Electric: 14-A Loud Speaker w. Amp. [Speaker-P] ID = 2048938 1400x875
Select picture or schematic to display from thumbnails on the right and click for download.

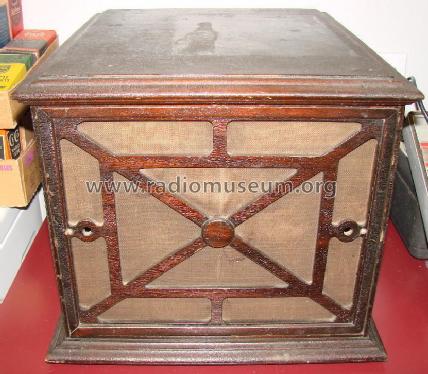

For model 14-A Loud Speaker w. Amp., Western Electric Company Inc.; New York (NY):
eBay item number:201700426924 The set pictured was sold on eBay for $820 on 11/06/16.

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1923 Category: Loudspeaker, headphone or earphone
Valves / Tubes 3: 216A 216A 216A
Wave bands - without
Details
Power type and voltage Direct Current supply (DC) / 6 & 120 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 14-A Loud Speaker w. Amp. - Western Electric Company Inc.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 390 x 340 x 480 mm / 15.4 x 13.4 x 18.9 inch
Notes

Speaker with integral amplifier. Price in 1924 $112.-

There is also a 14-A Monitor Horn.

An probably identical model exists in France: Radiojour type 14-A

Net weight (2.2 lb = 1 kg) 14.1 kg / 31 lb 0.9 oz (31.057 lb)
Price in first year of sale 175.00 $
Mentioned in Radio Manufacturers of the 1920's, Vol. 3

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
