1A63 Ch= 1A63-4A

1A63 Ch= 1A63-4A; Western Royal (ID = 2434339) Radio 1A63 Ch= 1A63-4A; Western Royal (ID = 2434340) Radio
1A63 Ch= 1A63-4A; Western Royal (ID = 2434341) Radio 1A63 Ch= 1A63-4A; Western Royal (ID = 2434344) Radio
1A63 Ch= 1A63-4A; Western Royal (ID = 2434343) Radio 1A63 Ch= 1A63-4A; Western Royal (ID = 2434342) Radio
1A63 Ch= 1A63-4A; Western Royal (ID = 2434345) Radio 1A63 Ch= 1A63-4A; Western Royal (ID = 2434346) Radio
Use red slider bar for more.
1A63 Ch= 1A63-4A; Western Royal (ID = 2434339) Radio
Western Royal: 1A63 Ch= 1A63-4A [Radio] ID = 2434339 1400x1549
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1A63 Ch= 1A63-4A, Western Royal (Western Auto?):
Picture from Christian Gardner.

Country:  United States of America (USA)
Manufacturer / Brand:  Western Royal (Western Auto?)
Year: 1940 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6SK7 6SJ7 6J5GT 6SK7 6U5 6SQ7 6SQ7 6SQ7 6K6GT 6K6GT 5Y3G
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out 4 W (5.5 W max.)
from Radiomuseum.org Model: 1A63 Ch= 1A63-4A - Western Royal Western Auto?
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 26 x 36.5 x 11 inch / 660 x 927 x 279 mm
Notes

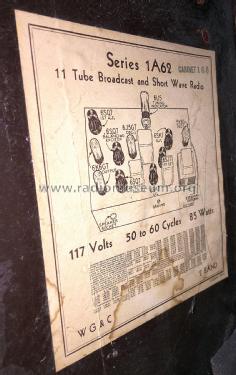

This model was manufactured by Wells-Gardner & Co., and has an identical schematic as Wells-Gardner model 1A62-4.

Literature/Schematics (1) Rider's Perpetual, Volume 13 = 1942 and before (Wells-Gardner page 13-1, 2)

Model page created by David Erali. See "Data change" for further contributors.
