H-615C12 Ch= V2152-16

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1950 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 110416
    • alternative name: Westinghouse El. Int.

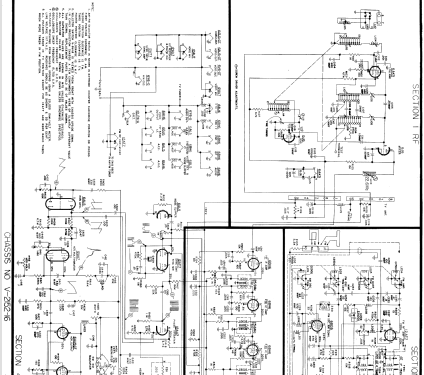

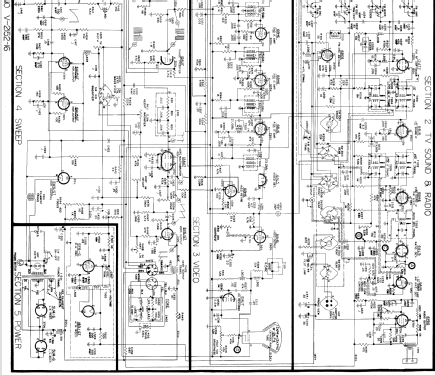

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 30
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-615C12 Ch= V2152-16 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

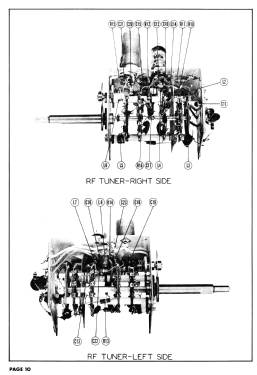

  • The Westinghouse H-615C12 is a combination 12" round tube b/w Television, AM/FM receiver, Record Changer and Speaker. The TV is equipped with US standard VHF tuner channels 2 thru 13 and has 12KP4 or 12KP4A or 12LP4 picture tube. AM tuning range is 540 to 1600 kHz, FM tuning range is 88 to 108 MHz. Uses chassis V2152-16. Uses Record Changer V-9022. Cabinet is Blonde. Westinghouse model H-611C12 uses the same chassis and schematic, the difference being the cabinet.

  • Source of data
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet RM3159)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
