• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 152289
    • alternative name: Westinghouse Canada

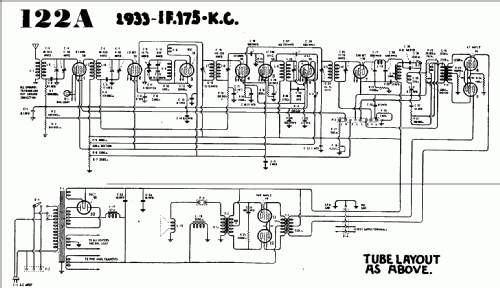

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org
  • Model: 122A - Canadian Westinghouse,
  • Notes
  • Schematic of 788(2) (RCA-Amer.) ,schematic of R-22A (RCA-Can.), schematics of J-125A (Gen. El. Can.) are similar to the schematic of model 122A Westinghouse.
  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)
  • Westinghouse page 13
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
