Columaire WR8 (T)

Columaire WR8; Westinghouse El. & (ID = 413246) Radio Columaire WR8; Westinghouse El. & (ID = 1661880) Radio
Columaire WR8; Westinghouse El. & (ID = 413248) Radio Columaire WR8; Westinghouse El. & (ID = 413247) Radio
Columaire WR8; Westinghouse El. & (ID = 413249) Radio Columaire WR8; Westinghouse El. & (ID = 413250) Radio
Columaire WR8; Westinghouse El. & (ID = 1292078) Radio Columaire WR8; Westinghouse El. & (ID = 1292079) Radio
Columaire WR8; Westinghouse El. & (ID = 1292080) Radio Columaire WR8; Westinghouse El. & (ID = 1661881) Radio
Use red slider bar for more.
Columaire WR8; Westinghouse El. & (ID = 413246) Radio
Westinghouse El. &: Columaire WR8 [Radio] ID = 413246 182x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Columaire WR8 (T), Westinghouse El. & Mfg. Co. - see also Canadian W.:
aus ebay, Verkäufer urbanradio

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 24 24 27 24 24 27 45 45 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Columaire WR8 - Westinghouse El. & Mfg. Co. -
Material Wooden case
Shape Grandfather Clock with Radio.
Dimensions (WHD) 13.5 x 60 x 11.5 inch / 343 x 1524 x 292 mm
Notes

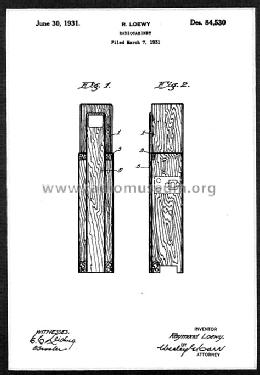

Grandfather clock radio, designed by Raymond Loewy. There ia also the same cabinet with a superhet 801 Columaire 8.

Price in first year of sale 194.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
