H17TU245 Ch= V-2383
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- 1957 ?
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Valves / Tubes
- 3AF4A 3BN4 6CG8A 8AU8 6BN4 6AQ5A 4BZ6 4BZ6 4CB6 4CS6 8CS7 8CG7 17DQ6A 17D4 1X2B 17CDP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: H17TU245 Ch= V-2383 - Westinghouse El. & Mfg. Co. -
- Tablemodel, with any shape - general.
Westinghouse model H17TU245 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis V-2383 and picture tube 17CDP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 378 Folder 14-S dated 11-57)

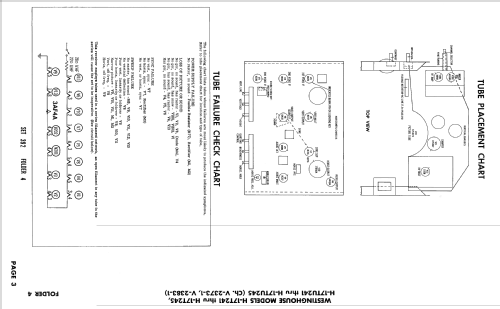

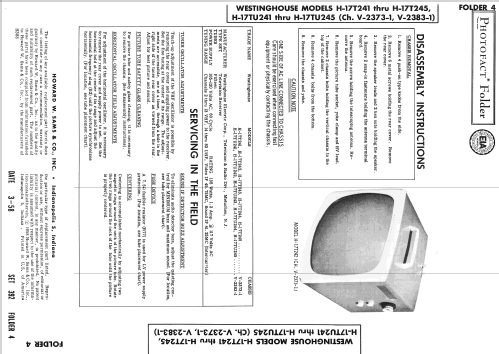

- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 392 Folder 4 dated 3-58)
- Model page created by Dirk Taekels. See "Data change" for further contributors.
