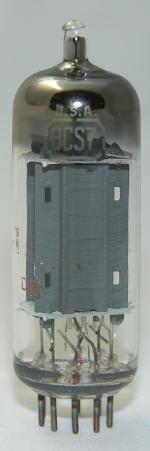

8CS7

Information - Help
ID = 5162



Tube type:  Double Triode
Identical to 8CS7
Similar Tubes
Heater different:
  6CS7

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 8.4 Volts / If 0.45 Ampere / Indirect
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
  8CS7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Michael Schlör

8CS7
Klaus Rüdiger


8CS7: RTT Schwandt
Günther Stabe


8CS7: RCA Tube Manual
Peter Hoddow


from Just Qvigstad

Usage in Models 10= 1957? ; 2= 1958? ; 6= 1959? ; 1= 1966??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):19
