H646K17 Ch= V2192

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 354623

• • alternative name: Westinghouse El. Int.

• Picture
• Schematics

Previous Next

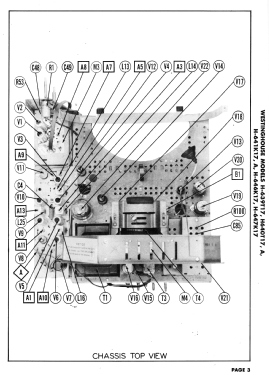

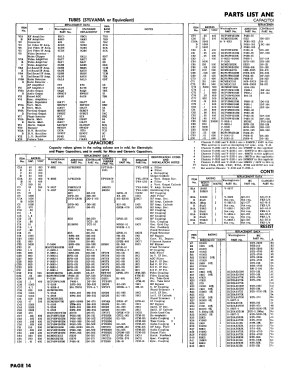

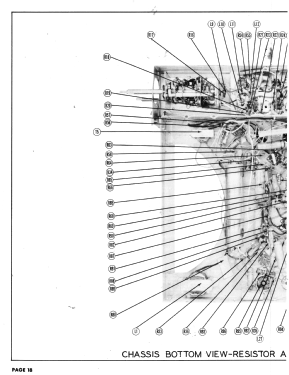

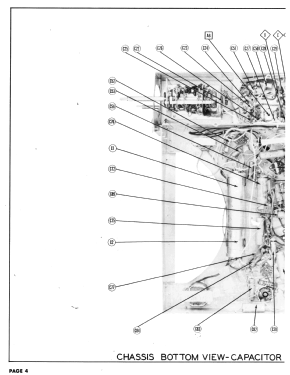

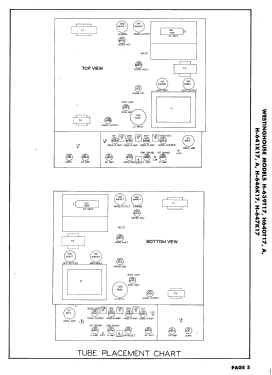

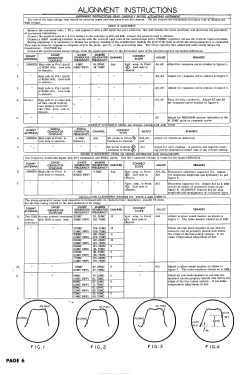

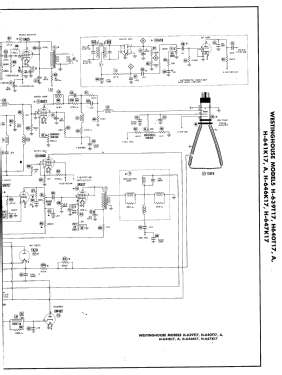

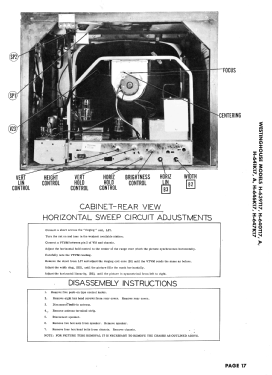

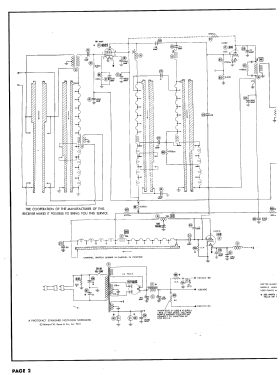

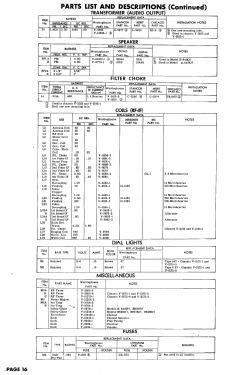

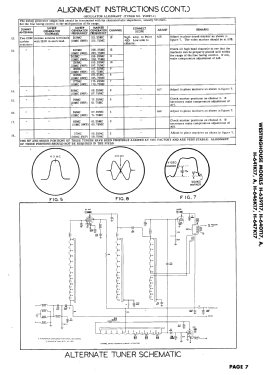

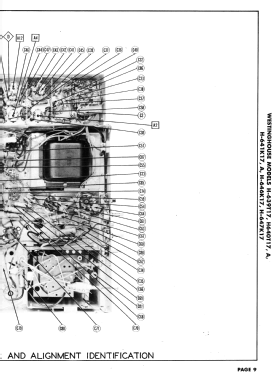

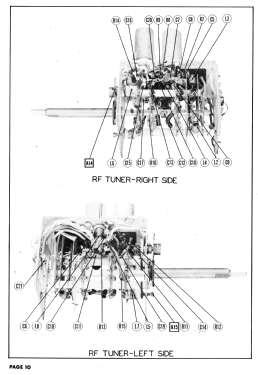

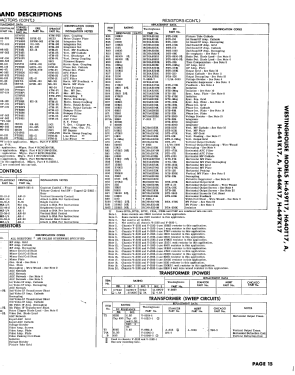

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BC5 or 6AK5 6J6 6CB6 6CB6 6CB6 6AL5 6AC7 or 6AJ7 or 6AH6 6BH6 or 6AU6 6BH6 or 6AU6 6AL5 or 6T8 6AT6 6AQ5 or 6W6GT 6AU6 12AT7 6SN7GT or 12AU7 6K6GT or 6V6GT 6C4 12BH7 or 12AU7 6AU5GT 6W4GT 1X2A or 1B3GT 5U4G 17AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H646K17 Ch= V2192 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Westinghouse H-646K17 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2192, VHF-tuner V-9886-5 and picture tube 17AP4.



• Literature/Schematics (1)
• Set 133, folder 15, dated 5-51

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
