H-501T5A Ch=V-2238-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 240450
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC 60 cycles, 110 to 120V or DC, 110 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: H-501T5A Ch=V-2238-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

  • The Westinghouse H-501T5A is an AC operated 5 tube BC band receiver. Cabinet color is Brown.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    H-499T5A Black
    H-500T5A Red
    H-501T5A Brown
    H-502T5A Green
    H-503T5A Light Gray

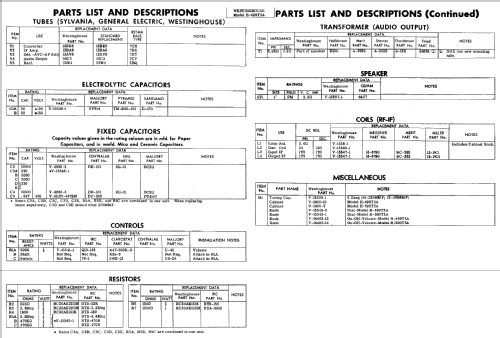

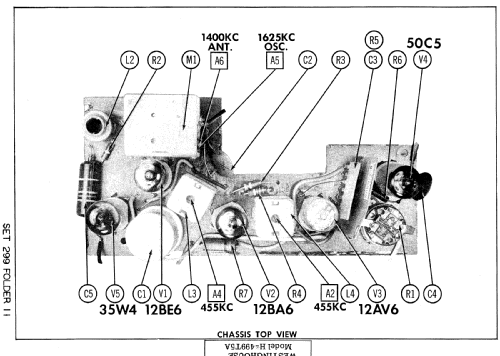

    The Beitman and SAMS documentation list only the H-499T5A and H500T5A models, but all of these models use chassis V-2238-1 and so the documentation is applicable to the H-501T5A, H-502T5A and H-503T5A models also.



  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
