• Year
  • 1950 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 216899
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 24
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 2.8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-638K20 Ch= V-2178 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

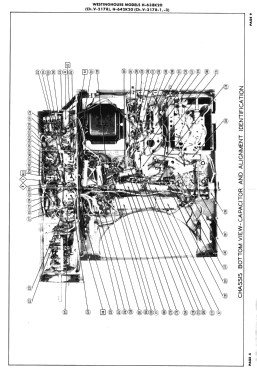

  • The Westinghouse H-638K20 is a 20" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2178 and picture tube 20DP4. The main V-2178 chassis consists of 2 sub-chassis: V-2158-2A is the IF chassis, V-2162-5 is the sweep chassis.

  • Literature/Schematics (1)

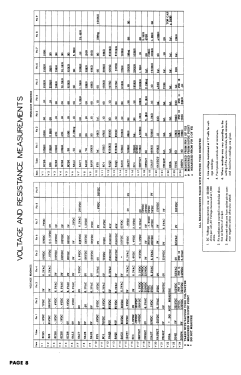

  • - - Manufacturers Literature (Westinghouse Datasheet RM3189)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
