• Year
  • 1951
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 217222
    • alternative name: Westinghouse El. Int.

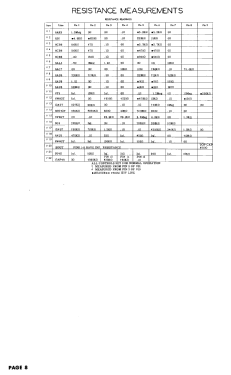

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 1.5 W (unknown quality)
  • from Radiomuseum.org
  • Model: H-659T17 Ch= V-2204-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • The Westinghouse H-659T17 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2200-1 and picture tube 17AP4A. For service information on this model, refer to Westinghouse model H-651K17 service notes and any supplementary information. With the exception of the shaft lengths on the volume and picture controls, chassis V-2200-1 corresponds to chassis V-2204-1.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheets RM3242 RM3261 RM3272 RM3231)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
