• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1958 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 84724

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AU6 12AX7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HF101BN Ch= V-2500-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Console with any shape - in general

• Notes
• Push-pull output stage.

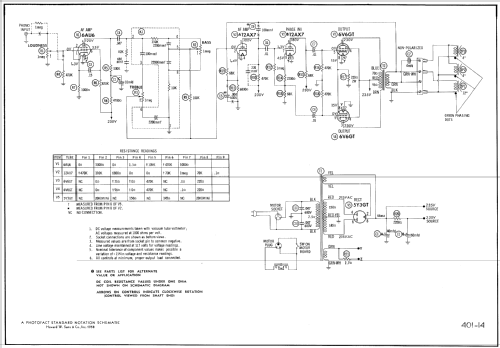

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 14)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
