Little Jewel "Refrigerator" H-126 Ivory

Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 189064) Radio

Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 189065) Radio

Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 189066) Radio

Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 189067) Radio

Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 189068) Radio
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 49997) Radio Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 200096) Radio
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 200101) Radio Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 200094) Radio
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 200100) Radio Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 229005) Radio
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 246478) Radio Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 246479) Radio
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 246480) Radio Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 246481) Radio
Use red slider bar for more.
Little Jewel 'Refrigerator' H-126; Westinghouse El. & (ID = 49997) Radio
Westinghouse El. &: Little Jewel "Refrigerator" H-126 [Radio] ID = 49997 263x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Little Jewel "Refrigerator" H-126 Ivory, Westinghouse El. & Mfg. Co. - see also Canadian W.

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1945–1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SF7 12SJ7 35A5 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.85 W (1.25 W max.)
from Radiomuseum.org Model: Little Jewel "Refrigerator" H-126 [Ivory] - Westinghouse El. & Mfg. Co. -
Material Bakelite case
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 150 x 240 x 150 mm / 5.9 x 9.4 x 5.9 inch
Notes

The Westinghouse H-126 is an AC/DC operated 6 tube BC band receiver.  Cabinet sides are black bakelite painted ivory. Cabinet center is brass sheet metal.

The following models use the same schematics and service notes:

Model Output Tube Cabinet Color
H-124 (Early Production) 35A5 Dark Green
H-124 (Late Production) 35L6GT Dark Green
H-125 (Early Production) 35A5 Light Green
H-125 (Late Production) 35L6GT Light Green
H-126 (Early Production) 35A5 Ivory
H-126 (Late Production) 35L6GT Ivory
H-127 (Early Production) 35A5 Burgundy
H-127 (Late Production) 35L6GT Burgundy
H-1251 (Early Production) 35A5 Not Known
H-1251 (Late Production) 35L6GT Not Known

A different tube socket was needed when the output tube changed.

NOTE: Riders service information documents that effective July 11, 1946, all models which have a "C" stamped on the chassis below the output tube have a resistor and capacitor added to the schematic.

Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

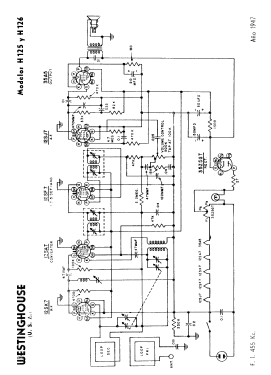

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 3, Folder 19 date 8-46)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (January 1946 page 19. April 1947 page 14.)
Literature/Schematics (3) Beitman Radio Diagrams, Vol. 06, 1946 (Page 166)


All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
Here you find 2794 models, 1681 with images and 2334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Westinghouse El. &: Little Jewel "Refrigerator" H-126
Threads: 2 | Posts: 2
Hits: 1620     Replies: 0
westinghou: H126; ivory;
Konrad Birkner † 12.08.2014
30.Mar.04
  1

Andere Farben mit eigener Modell-Nr.: H124 dunkelgrün; H125 hellgrün; H126 elfenbein; H127 burgunderrot;

Quelle: Bunis/Slusser


Hits: 2099     Replies: 0
westinghou: H126;
Konrad Birkner † 12.08.2014
23.Mar.04
  1

Westinghouse "Refrigerator" was available in different colors which had seperate Model numbers each: H124 dark green; H125 light green; H126 ivory; H127 burgundy;

Ref.: Bunis/Slusser: Antique Radios


Westinghouse El. &: Little Jewel "Refrigerator" H-126
End of forum contributions about this model
