- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66487
-
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 112 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

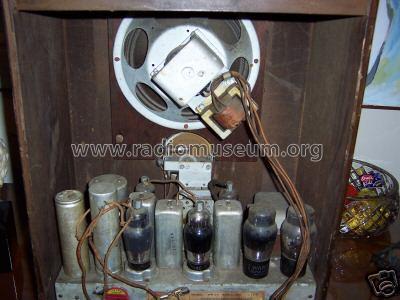

- Model: WR-28 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
540 to 1600 kc on standard, 5600 to 15,500 kc on short wave, airplane dial.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Rider's Perpetual, Volume 5 = ca. 1934 and before (5-11 , 5-12)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 311.)
- Literature/Schematics (3)
- Cathedral & Tombstone Radios (page 274.)
- Literature/Schematics (4)
- -- Original prospect or advert (The Westinghouse Folder W.S.R. 1052 for ca. 1934.)
