• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66488

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

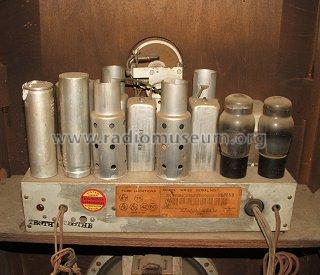

• 6A7 6D6 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 112 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

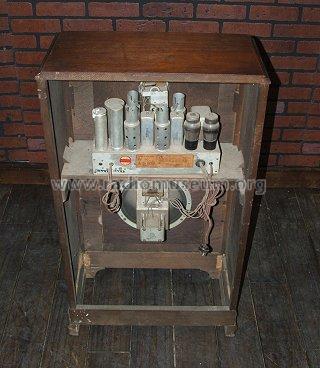

• Model: WR-29 - Westinghouse El. & Mfg. Co. -

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 5-11 , 5-12

• Literature/Schematics (2)
• Pre-War Consoles

• Literature/Schematics (3)
• -- Original prospect or advert (The Westinghouse Folder W.S.R. 1052 for ca. 1934.)

• Other Models

• Here you find 3107 models, 1739 with images and 2626 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
