• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66564

• • alternative name: Westinghouse El. Int.

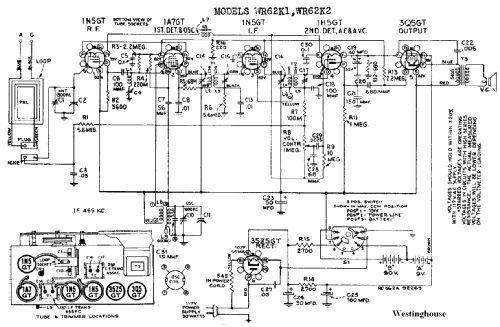

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1N5GT 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 105-125V AC/DC // 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: WR62K1 - Westinghouse El. & Mfg. Co. -

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.625 x 8.875 x 5.75 inch / 321 x 225 x 146 mm

• Notes
• Built in loop antenna.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 13-15

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (May 1941.)
