- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1939
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 267228
-
- alternative name: Jewell
Weston Print Ad
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 6 & 45 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscillator 787 - Weston Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Specially built to test television receivers.
Ultra high frequency test oscillator covers 22 to 150 mc. with continous band - spread, no band switching. Self-contained 400 cycle modulation; portable.
- Net weight (2.2 lb = 1 kg)
- 16 lb 0 oz (16 lb) / 7.264 kg
- Price in first year of sale
- 125.00 $
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (March 1939 page 36)
- Literature/Schematics (2)

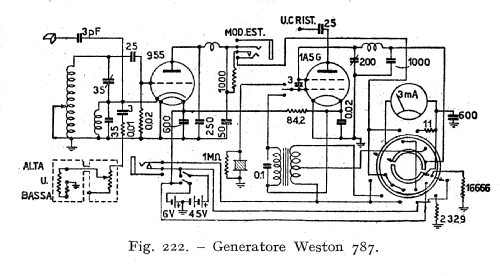

- Guida Pratica del Radioriparatore 3a edizione 1943
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
