Output Meter 687

Output Meter 687; Weston Electrical (ID = 2579675) Equipment Output Meter 687; Weston Electrical (ID = 2579673) Equipment
Output Meter 687; Weston Electrical (ID = 2579678) Equipment Output Meter 687; Weston Electrical (ID = 2579681) Equipment
Output Meter 687; Weston Electrical (ID = 2579677) Equipment Output Meter 687; Weston Electrical (ID = 2579680) Equipment
Use red slider bar for more.
Output Meter 687; Weston Electrical (ID = 2579675) Equipment
Weston Electrical: Output Meter 687 [Equipment] ID = 2579675 920x840
Select picture or schematic to display from thumbnails on the right and click for download.
For model Output Meter 687, Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL):
USA; Weston Electrical Instrument Co.; Newark, N.J.; Output Meter 687 - 2

Country:  United States of America (USA)
Manufacturer / Brand:  Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
alternative name

Jewell
Year: 1934 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Output Meter 687 - Weston Electrical Instrument
Material Bakelite case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 50 x 120 x 70 mm / 2 x 4.7 x 2.8 inch
Notes

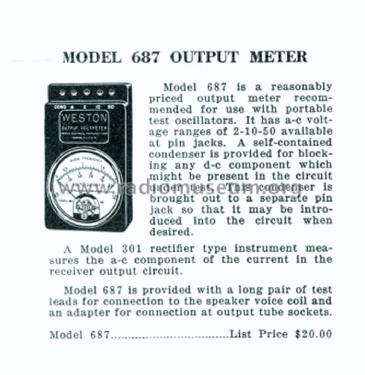

Model 687 is an output meter recommended for use with portable test oscillators. It has a-c voltage ranges of 2-10-50 availiable at pin jacks. A self-contained condenser is provided for blocking any d-c component which might be present in the circuit under test. This condenser is brought out to a separate pin jack so that it may be introduced into the circuit when desired.

A Model 301 rectifier type instrument measures the a-c component of the current in the receiver output circuit.

The 687 is provided with a long pair of test leads for connection to the speaker voice coil and an adaptor for connection at output tube sockets.



Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 20.00 USD
Mentioned in - - Manufacturers Literature (Weston Radio Instruments, Circular RC, April 1934)

Model page created by Peter Kahlich. See "Data change" for further contributors.
