- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1940 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 295912
-
- alternative name: Jewell
Underneath chassis
Advertisement from unknown magazine in USA.

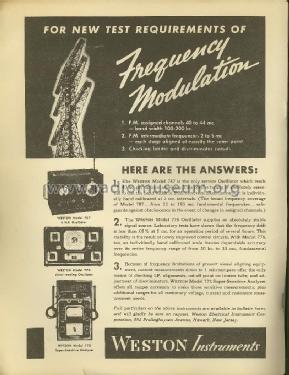

Radio Service-Dealer magazine May 1940
Radio Service-Dealer magazine May 1940
- Number of Tubes
- 5
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: RF Oscillator 776 - Weston Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Weston model 776 is an RF signal generator. Covers 50 kHz to 33 MHz in 6 ranges, with and without modulation.
- Mentioned in
- Radio Service-Dealer magazine May 1940
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
