Analyzer - Tube Checker (Tester) 774-5

Analyzer - Tube Checker 774-5; Weston Electrical (ID = 1559264) Equipment Analyzer - Tube Checker 774-5; Weston Electrical (ID = 630466) Equipment
Analyzer - Tube Checker 774-5; Weston Electrical (ID = 630467) Equipment Analyzer - Tube Checker 774-5; Weston Electrical (ID = 1559265) Equipment
Analyzer - Tube Checker 774-5; Weston Electrical (ID = 1559266) Equipment
Use red slider bar for more.
Analyzer - Tube Checker 774-5; Weston Electrical (ID = 1559264) Equipment

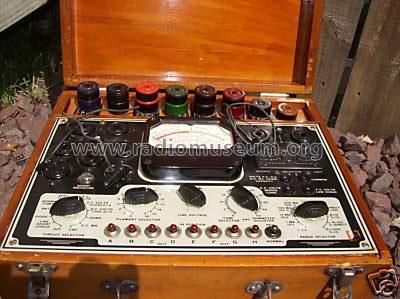

Weston Electrical: Analyzer - Tube Checker 774-5 [Equipment] ID = 1559264 805x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Analyzer - Tube Checker (Tester) 774-5, Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
alternative name

Jewell
Year: 1942 ?? Category: Service- or Lab Equipment
schematic requested
Main principle ZF/IF - kHz
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60Hz, 115 & internal battery 1.5 & 4.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analyzer - Tube Checker 774-5 - Weston Electrical Instrument
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Tube Tester and Multimeter.
Requires 1.5 V and 4.5 V Batteries.

See also the Weston Analyzer - Tube Checker 774-4.

External source of data needwaymorestuff
