Dovedale 3

Dovedale 3 ; Wharfedale Wireless, (ID = 2247899) Speaker-P Dovedale 3 ; Wharfedale Wireless, (ID = 2247900) Speaker-P
Dovedale 3 ; Wharfedale Wireless, (ID = 2247901) Speaker-P Dovedale 3 ; Wharfedale Wireless, (ID = 2247902) Speaker-P
Dovedale 3 ; Wharfedale Wireless, (ID = 2138688) Speaker-P Dovedale 3 ; Wharfedale Wireless, (ID = 2138689) Speaker-P
Dovedale 3 ; Wharfedale Wireless, (ID = 2247903) Speaker-P Dovedale 3 ; Wharfedale Wireless, (ID = 2138669) Speaker-P
Dovedale 3 ; Wharfedale Wireless, (ID = 2138670) Speaker-P Dovedale 3 ; Wharfedale Wireless, (ID = 2261383) Speaker-P
Use red slider bar for more.
Dovedale 3 ; Wharfedale Wireless, (ID = 2247899) Speaker-P
Wharfedale Wireless,: Dovedale 3 [Speaker-P] ID = 2247899 1400x1315
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dovedale 3, Wharfedale Wireless, Idle Bradford

Country:  Great Britain (UK)
Manufacturer / Brand:  Wharfedale Wireless, Idle Bradford
alternative name

Rank Wharfedale
Year: 1971 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Dovedale 3 - Wharfedale Wireless, Idle
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 365 x 610 x 305 mm / 14.4 x 24 x 12 inch
Notes

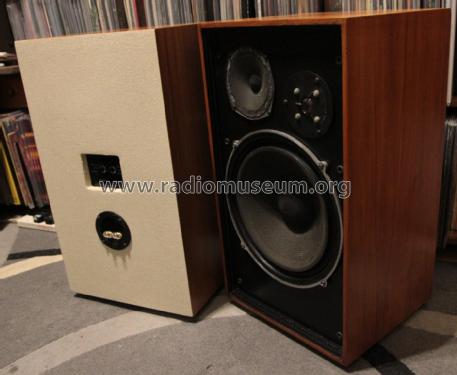

Type: 3 way, floor standing loudspeaker system
Frequency Response: 45Hz to 20kHz
Power Handling: 50W

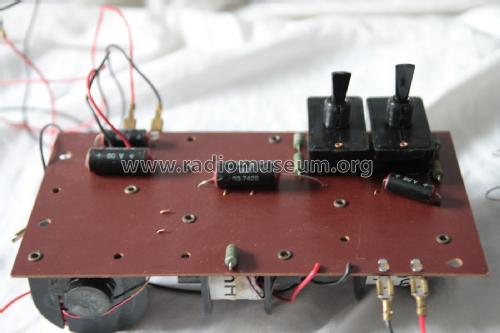

Crossover Frequency: 600, 5000Hz
Impedance: 6Ω
Bass: 1 x 300mm cone
Midrange: 1 x 130mm cone
Tweeter: 1 x 25mm
Enclosure: 45 litre

Net weight (2.2 lb = 1 kg) 19.550 kg / 43 lb 1 oz (43.062 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
