• Year
  • 1948/1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 17644
    • Brand: MWL

Click on the schematic thumbnail to request the schematic as a free document.

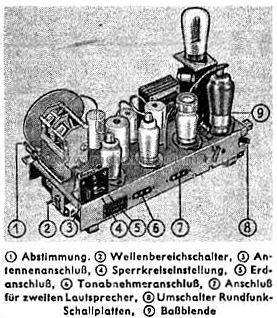

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 117/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Holstein 49Wa - Willisen Wilag, Hans Karl
  • Dimensions (WHD)
  • 570 x 400 x 270 mm / 22.4 x 15.7 x 10.6 inch
  • Notes
  • Siehe auch Modell Holstein W49 mit 2x EF9 statt AF3 und AF7.
  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Price in first year of sale
  • 466.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Lange-Nowisch
