Diplomat
Wilson; Milano
- Country
- Italy
- Manufacturer / Brand
- Wilson; Milano
- Year
- 1972 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 222170
sammlung
Sammlung
sammlung
sammlung
sammlung
sammlung
sammlung
sammlung
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Line / Batteries (any type) / 125; 160; 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 2 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Diplomat - Wilson; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 360 x 110 x 270 mm / 14.2 x 4.3 x 10.6 inch
- Notes
-

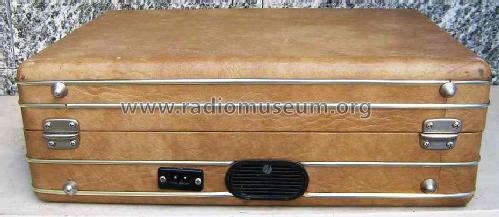

Diplomat, 33/17 - 45 und 78 Upm, System (Ronette 5A-250), Ton-Regler, Batteriefach, Holzgehäuse überzogen mit Hellbraunem Kunstleder.
Der Phonokoffer "Diplomat" war für Netzbetrieb und für Batterie- und Netzbetrieb erhältlich.
- Net weight (2.2 lb = 1 kg)
- 3.2 kg / 7 lb 0.8 oz (7.048 lb)
- Mentioned in
- Funk-Technik (FT) (10/1972, S. 368 / Messebericht Hannover)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
