• Year
  • 1963 ??
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 95754
    • Brand: Sihn jr., Wilhelm; Niefern

 Technical Specifications

  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

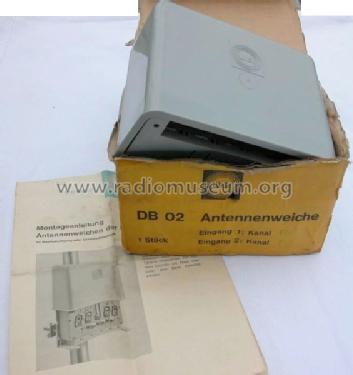

  • Model: Antennenweiche DB 02 - Wisi Wilh. Sihn; Niefern bei
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 145 x 105 x 60 mm / 5.7 x 4.1 x 2.4 inch
  • Notes
  • 2 Antenneneingänge á 60 Ohm für Fernsehbereich III (Kanäle 5-12=174-230 MHz). Ausgang: 60 Ohm für Kabel zum Empfänger. Gehäuse für Mast- oder Wandmontage.
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Rudolf HEINZ. See "Data change" for further contributors.
