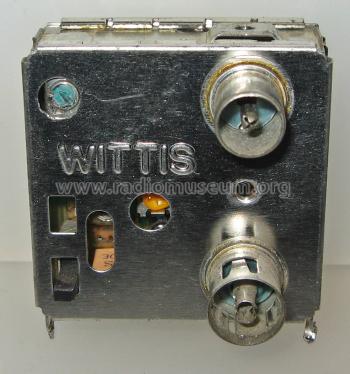

UHF-Modulator RF-S3805EUW

Wittis Electronics Ltd.; Hong Kong

  • Year
  • 1995 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 304923

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC: 5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: UHF-Modulator RF-S3805EUW - Wittis Electronics Ltd.; Hong
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 44 x 50 x 27 mm / 1.7 x 2 x 1.1 inch
  • Notes
  • UHF-Modulator für SAT-Receiver und Videorecorder.
    Audio- und Videosignal werden auf einen einstellbaren UHF-Kanal aufmoduliert.
    Zuschaltbarer Testbildgenerator.
    HF-Ein- und Ausgang 75-Ω-IEC-Anschlüsse.

  • Net weight (2.2 lb = 1 kg)
  • 0.041 kg / 0 lb 1.4 oz (0.09 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
