CXA1733

Information - Help
ID = 68379

Country:
Japan
Brand: Sony Corporation; Tokyo
Tube type:  IC - Integrated Circuit   UHF
Identical to CXA1733

Base Wires
Filament Solid State
Description

Aufbau/Content: Linear-IC;
Form/Case/Outline: SOP-20 (CXA1733BM-x [1/2/3 = Audio Modulation Sensivity]);

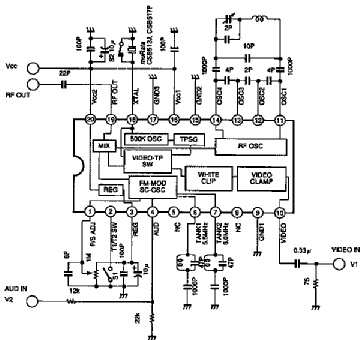

Type/Application: UHF-Band RF Modulator for PAL VCR;
Daten/electr.data: Ucc: 5 V; ; Iccq: ~34 mA; Bandwidth: 470...750 MHz; Pd: <350 mW; t op: -20 ... +75 °C;
-


Dimensions (WHD)
incl. pins / tip
12 x 2 x 5 mm / 0.47 x 0.08 x 0.20 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature
  CXA1733: Sony
Günther Stabe † 19.8.20

CXA1733: M.M.
Michael Mischke


CXA1733: Sony
Günther Stabe † 19.8.20


CXA1733: Sony
Günther Stabe † 19.8.20


Usage in Models 2= 1995?? ; 1= 2003?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
