• Country
• Germany

• Manufacturer / Brand
• Wobbe-Radio; Winsen, später Rendsburg bei Kiel

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17692

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UF6 UL2_Valvo UY4

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; Reaction

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

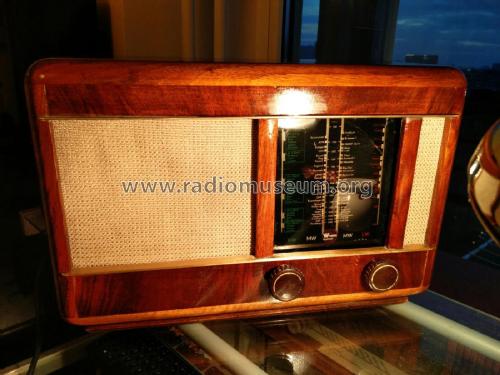

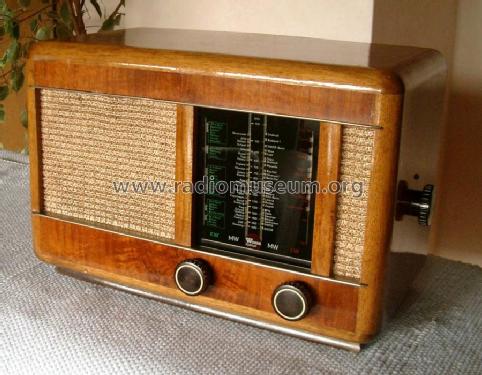

• Model: Syndikus WS4450 - Wobbe-Radio; Winsen, später

• Dimensions (WHD)
• 387 x 252 x 197 mm / 15.2 x 9.9 x 7.8 inch

• Notes

• Alu-Chassis, Tonblende auf der Rückseite.

  Skalenlampen: 2x 18V 0,1A

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
