• Country
• Italy

• Manufacturer / Brand
• Wundercart; Saronno, VA

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142337

• Number of Tubes
• 7

• Valves / Tubes
• 6BQ7A ECH81 EF89 UABC80 EM81 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

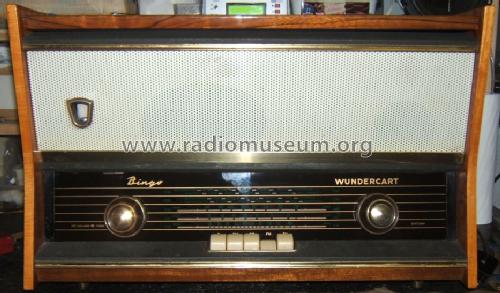

• Model: Bingo - Wundercart; Saronno, VA

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 340 x 300 mm / 20.5 x 13.4 x 11.8 inch

• Notes
• Oltre alla gamma FM è presente la gamma VHF TV (solo audio). E' presente controrazione audio tra il secondario del trasformatore d'uscita e la UABC80. L'altoparlante ellittico principale è affiancato da un tweeter collegato tramite un condensatore elettrolitico da 25uF.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 29 models, 23 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
