FR-101; Yaesu-Musen Co. Ltd. (ID = 52103) Amateur-R

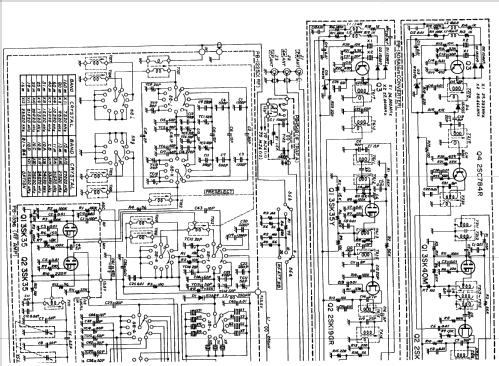

Yaesu-Musen Co. Ltd.: FR-101 [Amateur-R] ID = 52103 640x367
Select picture or schematic to display from thumbnails on the right and click for download.
For model FR-101, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1974–1978 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) 37:
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 100; 110; 117; 200; 220 / 13.5 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2 W (unknown quality)
from Radiomuseum.org Model: FR-101 - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 340 x 153 x 285 mm / 13.4 x 6 x 11.2 inch
Notes ICs: 6
Yaesu Communications-Receiver FR-101.
Coverage 1.8 to 30 MHz in 21× 500 kHz ranges plus optional 6-m- and 2-m-HAM band; Modes: AM, CW, SSB, RTTY, FM (optional); xtal-filters; with digital readout available. Matches FL-101/FT-101.
In Europe Sommerkamp-Label.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 499.00 $
Collectors' prices
External source of data Eilert Menke
Source of data -- Original-techn. papers.
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Yaesu-Musen Co. Ltd.; Tokyo
Here you find 250 models, 239 with images and 78 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Yaesu-Musen Co. Ltd.: FR-101
Threads: 3 | Posts: 6
Hits: 1114     Replies: 2
yaesu: FR-101;
Gabriele Seccia
02.Aug.15
  1

Salve sul mio FR 101 ho notato che vi e' montata una basetta descritta nel manuale d'istruzioni come " UNIT PB - 1311 " . su questa basetta dovrebbero esserci montati 4 quarzi ( premetto che il ricevitore funziona perfettamente) che attualmente mancano . Essendo poco esperto di apparati come questo , oltretutto il manuale e' in Inglese , vorrei sapere se qualche socio ha idea quali tipi di quarzo devono esser montati su questa basetta e che scopo avrebbero quest' ultimi . a tal proposito allego foto della basetta.

Saluti Seccia Gabriele

Attachments

Eilert Menke
05.Aug.15
  2

Hello Gabriele,

this unit generates rather than the VFO four switchable frequencies, separately for each band. The crystal frequencies must ensure - as the VFO - lying area from 8.7 to 9.2 MHz (local oscilator). The mixing takes place between the first and second IF level instead (6.02 to 5.52 MHz). Depending on what frequency one yu wants to receive within this 500 kHz, it is necessary to add 3.180 MHz (second IF, fixed), and then you have the respective crystal frequency.

Because in a hurry, translated unfortunately only in English and with Google. Sorry.

Salute

Eilert

Gabriele Seccia
06.Aug.15
  3

Ciao Eilert

Thanks for description no problem i translate this.

Saluti

Seccia Gabriele


Hits: 1058     Replies: 0
yaesu: FR-101;
Gabriele Seccia
23.Feb.14
  1

Salve ai soci , avrei una domanda su uno stampato che ho trovato in vendita su Ebay , essendo in possesso di un FR 101 , vorrei sapere se qualcuno potrebbe indicarmi a cosa serve tale circuito e se volessi acquistarlo dove lo dovrei inserire all'interno del ricevitore . a tale scopo allego la foto .

Distinti saluti Seccia Gabriele

Attachments


Hits: 1184     Replies: 1
yaesu: FR-101; Quale scheda manca ?
Gabriele Seccia
17.Jan.14
  1

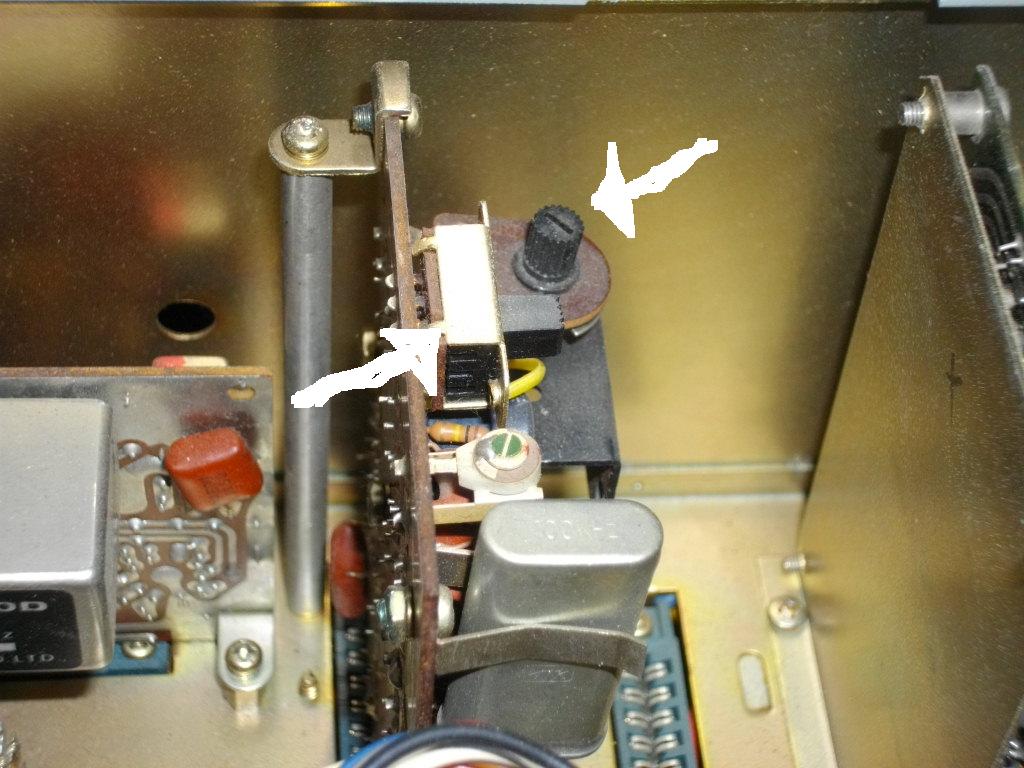

Buonasera ai soci, all'interno del mio FR101 , ho notato uno slot libero (senza scheda) , premesso che il ricevitore funziona benissimo , qualcuno saprebbe dirmi qual'e' la scheda mancante ? e che funzioni hanno il trimmer e il deviatore montati sulla scheda a fianco e contrassegnati da 2 frecce bianche ? (vedi foto 2 ) ,ed eventualmente se , ad occhi esperti , manca qualche altro componente opzional a me sfuggito?

Saluti GABRIELE

Attachments

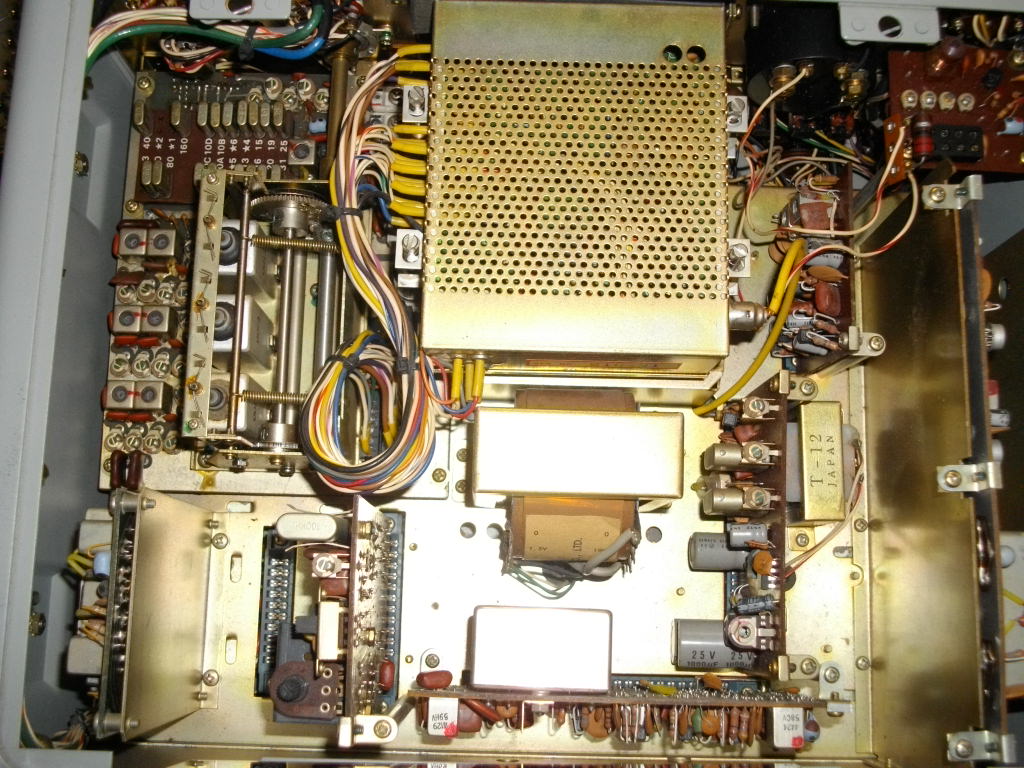

  • 1 (222 KB)
  • 2 (127 KB)
  • 3 (237 KB)
Michael Watterson
17.Jan.14
  2

FM opzionale (FT101E FT101ZD anche).


Yaesu-Musen Co. Ltd.: FR-101
