Frequency Display YC-221

Frequency Display YC-221; Yaesu-Musen Co. Ltd. (ID = 2331234) Amat TRX Frequency Display YC-221; Yaesu-Musen Co. Ltd. (ID = 2331235) Amat TRX
Use red slider bar for more.
Frequency Display YC-221; Yaesu-Musen Co. Ltd. (ID = 2331234) Amat TRX

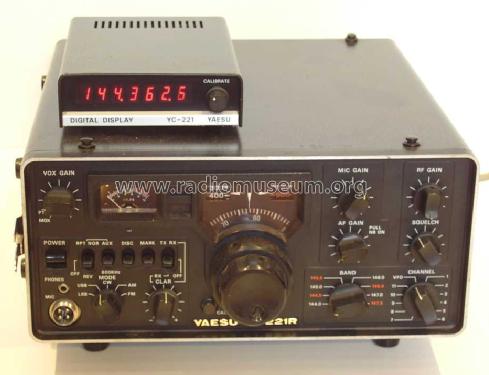

Yaesu-Musen Co. Ltd.: Frequency Display YC-221 [Amat TRX] ID = 2331234 933x715
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequency Display YC-221, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1976 ? Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 13,5 = Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequency Display YC-221 - Yaesu-Musen Co. Ltd.; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 114 x 34 x 160 mm / 4.5 x 1.3 x 6.3 inch
Notes

Digitale Frequenzanzeige als Zusatzgerät zum Yaesu FT-221R

Anzeigebereich: 144 - 148 MHz



Net weight (2.2 lb = 1 kg) 0.490 kg / 1 lb 1.3 oz (1.079 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
