• Year
  • 1984
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 198635
    • alternative name: Nippon Gakki

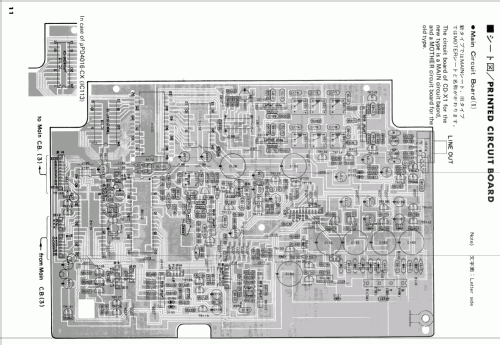

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • from Radiomuseum.org

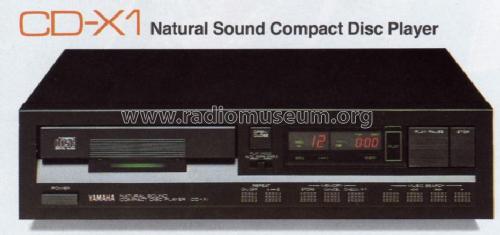

  • Model: CD-X1 - Yamaha Co.; Hamamatsu
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 340 x 92 x 290 mm / 13.4 x 3.6 x 11.4 inch
  • Notes
  • Compact Disc Spieler, 3-Strahl-Laser.
  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
