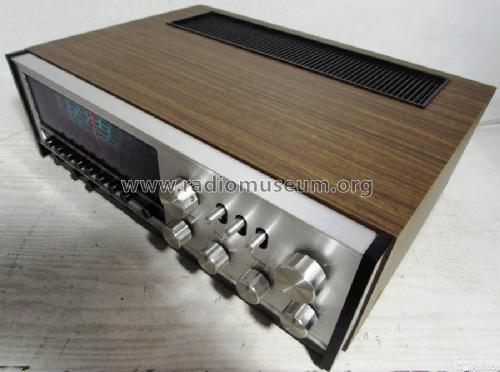

CR-510LS

Country:  Japan
Manufacturer / Brand:  Yamaha Co.; Hamamatsu
alternative name

Nippon Gakki
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 44 W (unknown quality)
from Radiomuseum.org Model: CR-510LS - Yamaha Co.; Hamamatsu
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 140 x 300 mm / 16.5 x 5.5 x 11.8 inch
Notes 5-Band Stereo Receiver mit 22 Watt Sinus per Kanal (1kHz), Klirrfaktor 0,05%.
Sender-Feineinstellung.
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
