Multitrack Cassette Recorder MT4X

Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447535) R-Player Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447613) R-Player
Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447614) R-Player Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447615) R-Player
Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447616) R-Player Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2449827) R-Player
Use red slider bar for more.
Multitrack Cassette Recorder MT4X; Yamaha Co.; (ID = 2447535) R-Player
Yamaha Co.;: Multitrack Cassette Recorder MT4X [R-Player] ID = 2447535 1400x1028
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multitrack Cassette Recorder MT4X, Yamaha Co.; Hamamatsu:
ebay seller: blauduck333 _123943225989

Country:  Japan
Manufacturer / Brand:  Yamaha Co.; Hamamatsu
alternative name

Nippon Gakki
Year: 1999 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player

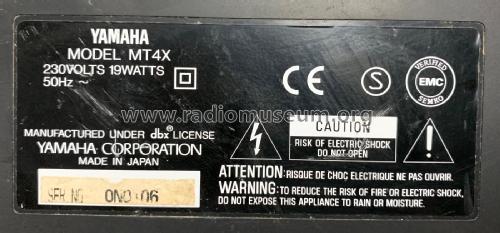

Power type and voltage Alternating Current supply (AC) / 60 Hz 120 V or 50 Hz 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Multitrack Cassette Recorder MT4X - Yamaha Co.; Hamamatsu
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 414 x 111 x 311 mm / 16.3 x 4.4 x 12.2 inch
Notes

Track configuration: 4 track/4 channel one direction
Dedicated Tape Type: C-46-90 Chrome Type II (Bias EQ 70 µs)
Heads: 4-track Hard Permalloy record/play
            4-track ferrite erase
Motor: DC servo motor
Tape Speed: 9.5 cm/s or 4.8 cm/s with pitch control ±10 %
Wow and Flutter: 0.1 % WRMS at 9.5 cm/s
Frequency response: 20 Hz-20 kHz +1 dB / -3 dB

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Mentioned in -- Original-techn. papers.

Model page created by Bartosz Szwed. See "Data change" for further contributors.
