Natural Sound Mini Component System GX-5

Yamaha Co.; Hamamatsu

  • Year
  • 1995/1996
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 206765
    • alternative name: Nippon Gakki

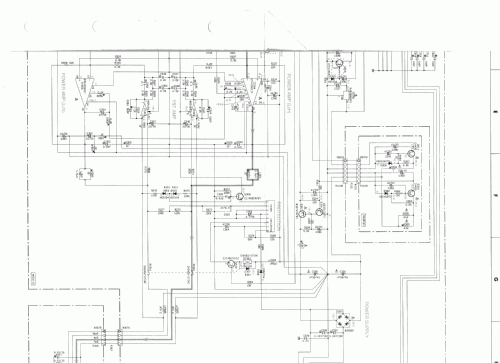

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (unknown quality)
  • from Radiomuseum.org
  • Model: Natural Sound Mini Component System GX-5 - Yamaha Co.; Hamamatsu
  • Shape
  • Book-shelf unit.
  • Notes
  • HiFi Minikomponenten-System. Sinus 2x40W an 4 Ohm nach DIN, fernbedienbare motorgetriebene Lautstärkeregelung, 5 Audioeingänge, Doppelkassettendeck mit Autoreverse und Dolby B/C, CD 3-fach Wechsler mit Play Xchange, UKW/MW/LW Empfangsteil mit 40 Senderspeicher, 7-Band Equalizer, Baßreflex Lautsprecher. Verstärker/Kassettenteil 280x151x356mm 6,2kg. CD/Tuner/Prozessorteil 280x151x367mm 5,0 kg.
  • Price in first year of sale
  • 1,030.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
