Natural Sound Stereo Amplifier AX-500

Yamaha Co.; Hamamatsu

  • Year
  • 1987
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 156520
    • alternative name: Nippon Gakki

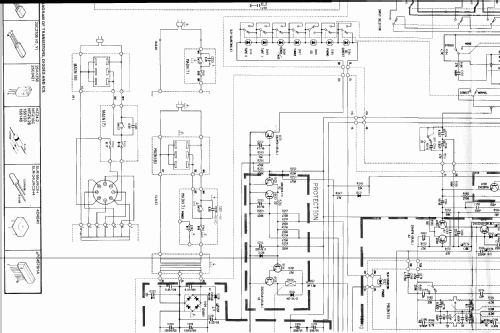

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 100 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 240 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Natural Sound Stereo Amplifier AX-500 - Yamaha Co.; Hamamatsu
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 139 x 332 mm / 17.1 x 5.5 x 13.1 inch
  • Notes
  • Stereo Amplifier, for the Japanese market (100 V mains), for the European market 220 V.

    Zu den Leistungsangaben:

    2X 85 W an 8 Ohm RMS

    2X 120 W an 4 Ohm (DIN-Standard, siehe auch beigefügtem Datenblatt).

  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
