• Year
  • 1983/1984
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 198509
    • alternative name: Nippon Gakki

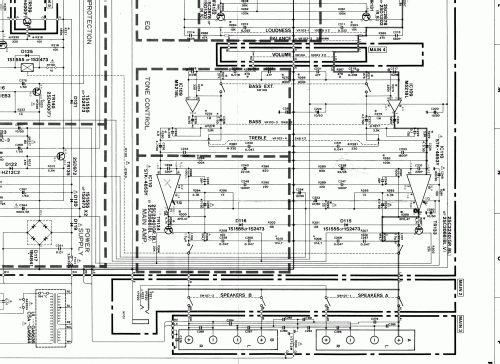

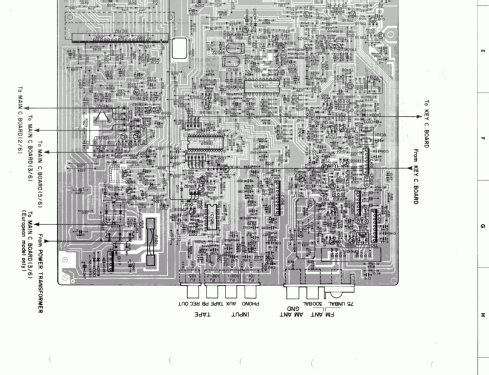

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 70 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: R-30 - Yamaha Co.; Hamamatsu
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 102 x 347.7 mm / 17.1 x 4 x 13.7 inch
  • Notes
  • HiFi Receiver, Sinusleistung 2x 35W nach DIN, je 5 Stationsspeicher für MW-UKW.
  • Net weight (2.2 lb = 1 kg)
  • 6.4 kg / 14 lb 1.6 oz (14.097 lb)
  • Price in first year of sale
  • 617.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
