Speaker System NS-10

Speaker System NS-10; Yamaha Co.; (ID = 2399257) Speaker-P Speaker System NS-10; Yamaha Co.; (ID = 2399258) Speaker-P

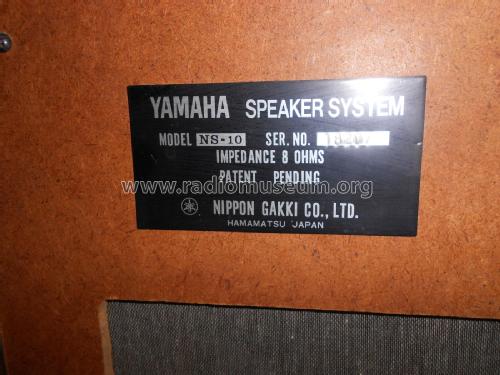

Speaker System NS-10; Yamaha Co.; (ID = 2399260) Speaker-P Speaker System NS-10; Yamaha Co.; (ID = 2399261) Speaker-P
Speaker System NS-10; Yamaha Co.; (ID = 2399262) Speaker-P Speaker System NS-10; Yamaha Co.; (ID = 2399264) Speaker-P
Use red slider bar for more.
Speaker System NS-10; Yamaha Co.; (ID = 2399257) Speaker-P
Yamaha Co.;: Speaker System NS-10 [Speaker-P] ID = 2399257 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker System NS-10, Yamaha Co.; Hamamatsu

Country:  Japan
Manufacturer / Brand:  Yamaha Co.; Hamamatsu
alternative name

Nippon Gakki
Year: 1966 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Speaker System NS-10 - Yamaha Co.; Hamamatsu
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 355 x 490 x 172 mm / 14 x 19.3 x 6.8 inch
Notes

"The Ear Shaped ones" - 2 vie - woofer sagomato altezza 39 cm - larghezza 30 cm - tweeter 5 cm - impedenza 8 Ω.



Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
