• Country
• Japan

• Manufacturer / Brand
• Yamaha Co.; Hamamatsu

• Year
• 1977/1978

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 157997

• • alternative name: Nippon Gakki

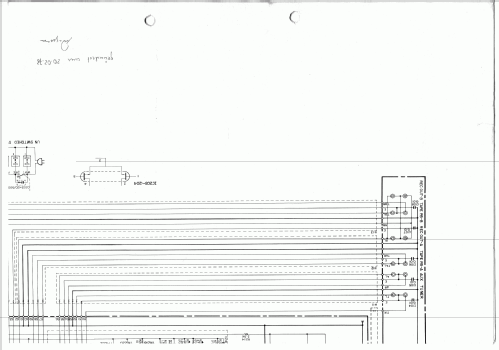

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

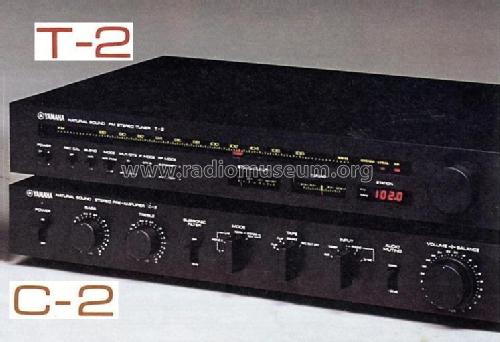

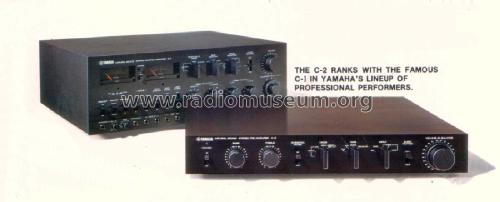

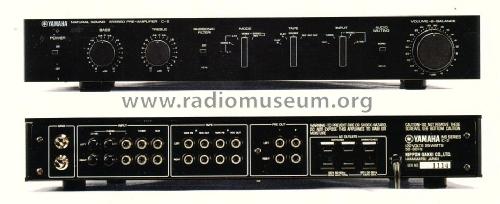

• Model: Stereo Pre Amplifier C-2 - Yamaha Co.; Hamamatsu

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 436 x 151 x 370 mm / 17.2 x 5.9 x 14.6 inch

• Notes
• Natural Sound HiFi-Stereo-Vorverstärker.
  Leistungsaufnahme 25 Watt.
  Gehäuse: Blackline.

• Source of data

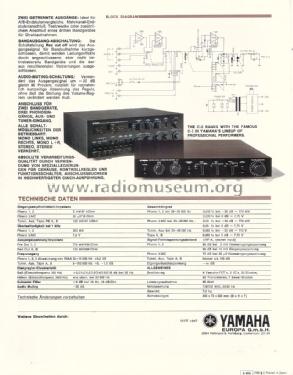

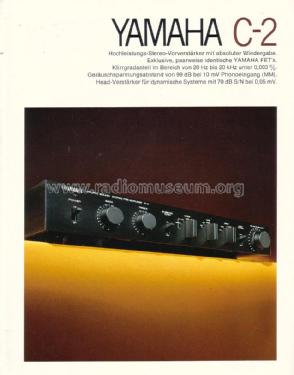

• -- Original prospect or advert

• Mentioned in
• Funkschau (16/1977, S. 733 - 737)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
