• Country
• Japan

• Manufacturer / Brand
• Yamaha Co.; Hamamatsu

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160845

• • alternative name: Nippon Gakki

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: T-7000 - Yamaha Co.; Hamamatsu

• Source of data

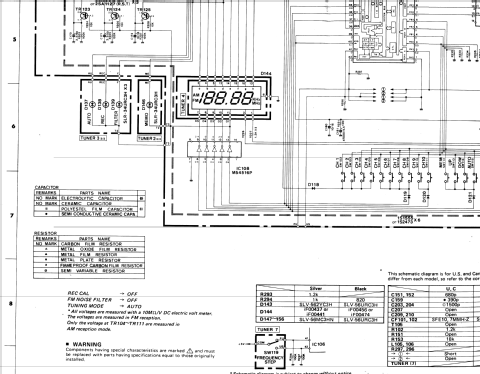

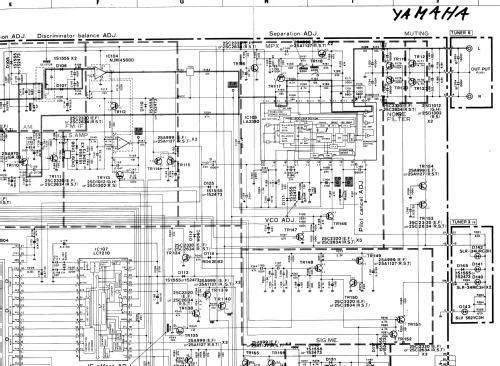

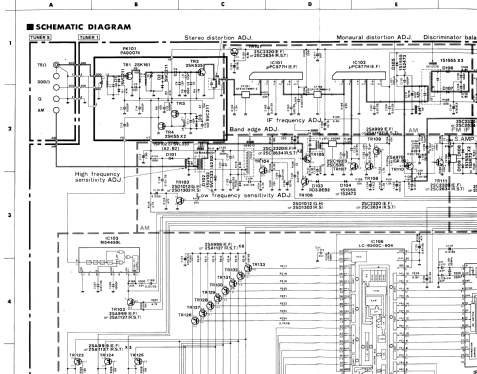

• -- Schematic

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
