Arkona ; Unitra ZRK, Zaklady (ID = 2098529) Radio

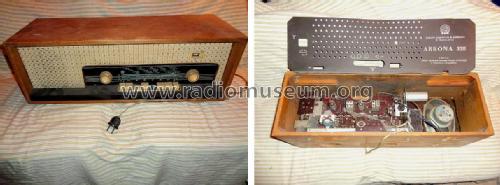

Unitra ZRK, Zaklady: Arkona [Radio] ID = 2098529 1215x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arkona, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka:
Image taken from polish online auction portal .allegro.pl. Auction number: 6772517927

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL82 EM80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 120, 200, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Arkona - Unitra ZRK, Zaklady Radiowe im
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 645 x 706 x 347 mm / 25.4 x 27.8 x 13.7 inch
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 2'650.00 PLZ
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Here you find 211 models, 179 with images and 85 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
