Bolero 3281

Bolero 3281; Unitra ZRK, Zaklady (ID = 359544) Radio

Bolero 3281; Unitra ZRK, Zaklady (ID = 969225) Radio
Bolero 3281; Unitra ZRK, Zaklady (ID = 320922) Radio Bolero 3281; Unitra ZRK, Zaklady (ID = 320923) Radio
Bolero 3281; Unitra ZRK, Zaklady (ID = 320924) Radio Bolero 3281; Unitra ZRK, Zaklady (ID = 320925) Radio
Bolero 3281; Unitra ZRK, Zaklady (ID = 827046) Radio Bolero 3281; Unitra ZRK, Zaklady (ID = 861320) Radio
Bolero 3281; Unitra ZRK, Zaklady (ID = 1297503) Radio Bolero 3281; Unitra ZRK, Zaklady (ID = 1297504) Radio

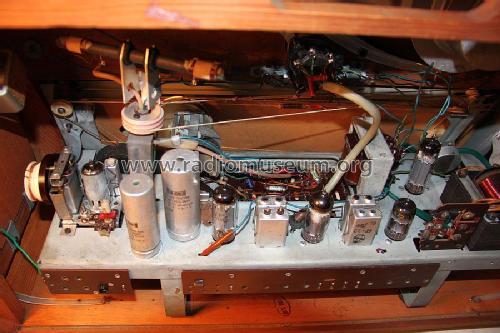

Bolero 3281; Unitra ZRK, Zaklady (ID = 1835900) Radio Bolero 3281; Unitra ZRK, Zaklady (ID = 1835901) Radio
Use red slider bar for more.
Bolero 3281; Unitra ZRK, Zaklady (ID = 320922) Radio
Unitra ZRK, Zaklady: Bolero 3281 [Radio] ID = 320922 933x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bolero 3281, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC85 EM4 EL84
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100-220 Volt
Loudspeaker 3 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Bolero 3281 - Unitra ZRK, Zaklady Radiowe im
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 420 x 260 mm / 24.4 x 16.5 x 10.2 inch
Notes DOG53, sel2p. First version had UKW in band 87-100MHz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 2'850.00 zl
Source of data -- Collector info (Sammler)

Model page created by Franz Scharner. See "Data change" for further contributors.
