• Year
  • 1979
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 107160
    • Brand: Unitra

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 24 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

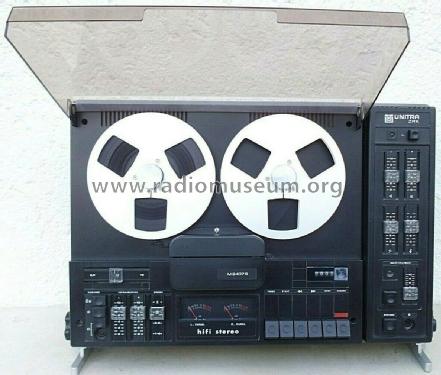

  • Model: M2407S - Unitra ZRK, Zaklady Radiowe im
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 545 x 370 x 180 mm / 21.5 x 14.6 x 7.1 inch
  • Notes
  • Das Bandgerät M2407S hat 2 Bandgeschwindigkeiten (9,53 cm/s und 19,05 cm/s), enthält 5 ICs und hat eine Ausgangsleistung von 2x 12 Watt. Eingänge für Mikrofon, TA und TB, sowie ein Ausgang für Kopfhörer gehören zur Ausstattung. Frequenzgang 40 - 18000 Hz bei 19,05 cm/s.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
