Unitra Figaro 3

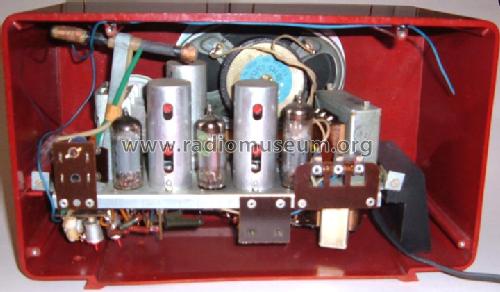

Unitra Figaro 3; Unitra ZRK, Zaklady (ID = 147648) Radio Unitra Figaro 3; Unitra ZRK, Zaklady (ID = 147649) Radio
Use red slider bar for more.
Unitra Figaro 3; Unitra ZRK, Zaklady (ID = 147648) Radio
Unitra ZRK, Zaklady: Unitra Figaro 3 [Radio] ID = 147648 720x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unitra Figaro 3, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL82 DM70
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Unitra Figaro 3 - Unitra ZRK, Zaklady Radiowe im
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 175 x 150 mm / 12.2 x 6.9 x 5.9 inch
Notes Uses an autotransformer and metal rectifier in power supply. Uses same valve lineup and similar components to the Unitra Figaro Special but with a plastic as opposed to polished wooden case.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by William J Blanchflower. See "Data change" for further contributors.
