Darling

Darling ; Zehetner Radiobau- (ID = 57321) Radio

Darling ; Zehetner Radiobau- (ID = 2120578) Radio

Darling ; Zehetner Radiobau- (ID = 2120579) Radio
Darling ; Zehetner Radiobau- (ID = 278369) Radio Darling ; Zehetner Radiobau- (ID = 2725) Radio
Darling ; Zehetner Radiobau- (ID = 308626) Radio Darling ; Zehetner Radiobau- (ID = 139099) Radio
Darling ; Zehetner Radiobau- (ID = 139098) Radio Darling ; Zehetner Radiobau- (ID = 308627) Radio
Darling ; Zehetner Radiobau- (ID = 375197) Radio Darling ; Zehetner Radiobau- (ID = 680578) Radio
Darling ; Zehetner Radiobau- (ID = 1011769) Radio Darling ; Zehetner Radiobau- (ID = 1709422) Radio
Use red slider bar for more.
Darling ; Zehetner Radiobau- (ID = 278369) Radio

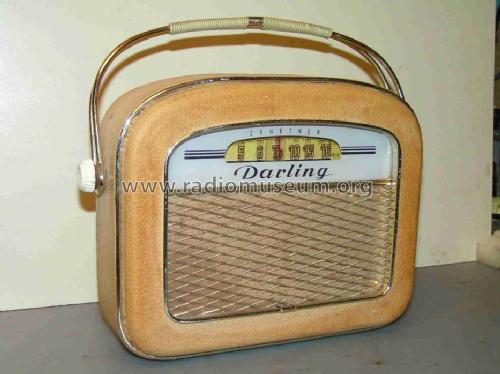

Zehetner Radiobau-: Darling [Radio] ID = 278369 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Darling, Zehetner (Radiobau-Zehetner); Wien

Country:  Austria
Manufacturer / Brand:  Zehetner (Radiobau-Zehetner); Wien
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC45 OC71 OC72 OC72 OA85
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 110-220 / 2 x 3 / 6 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: Darling - Zehetner Radiobau-Zehetner;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 155 x 60 mm / 7.9 x 6.1 x 2.4 inch
Notes Mittelwellen 185 - 590 m.
Batterie/Auto/Netz; Holzgehäuse mit abwaschbarem Plastiküberzug; Dyn. Lautsprecher 105 mm
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 1'890.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 114/2002, S.25 ff, Gerätebeschreibung)
Literature/Schematics (1) RADIOBOTE, Österr. (Heft 29/2010, S.14 ff, Versuch einer Restaurierung)


All listed radios etc. from Zehetner (Radiobau-Zehetner); Wien
Here you find 67 models, 42 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Zehetner Radiobau-: Darling
Threads: 1 | Posts: 1
Hits: 1791     Replies: 0
zehetner: Darling
Gerhard Heigl
11.Dec.02
  1 Baujahr 1957, Gewicht: 1,5 kg mit Batterien, Orig.Preis: 1890 S, Betrieb: 220V~ 2x3V Stab. BHT: 200x155x60, 7 Transistoren: OC44, 3xOC45, 3xOC72. Netzbetrieb wird durch ein Kondensatornetzteil ermöglicht.

Zehetner Radiobau-: Darling
