• Country
• Austria

• Manufacturer / Brand
• Zehetner (Radiobau-Zehetner); Wien

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25375

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK92 DF91 DAF91 DL94

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 150; 200; 220; 240 AC-DC/ 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

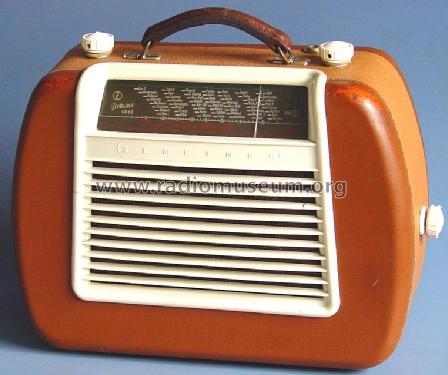

• Model: Frohsinn UB62 [normalausf.] - Zehetner Radiobau-Zehetner;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 369 x 320 x 255 mm / 14.5 x 12.6 x 10 inch

• Notes
• Phonoanschluss

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 1,980.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb
