10S130 Ch= 1004

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1936/1937

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
19032

- alternative name: Chicago Radio Lab

Schematics

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 62299) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 20796) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

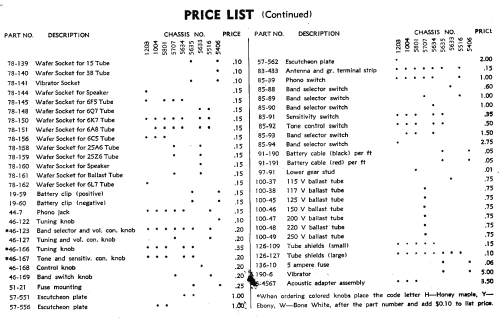

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316109) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316110) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316111) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316112) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316113) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316114) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 316115) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 2728188) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 2728190) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

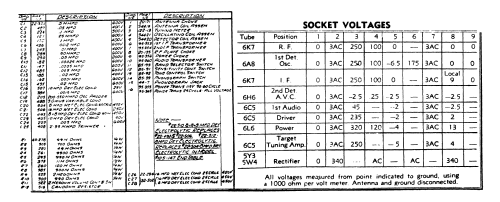

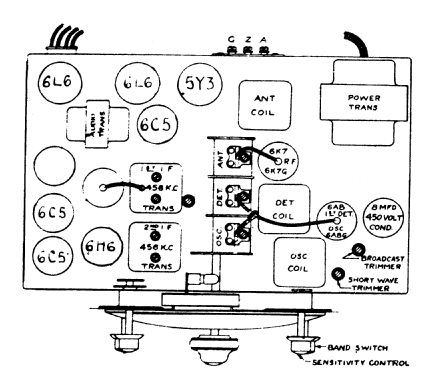

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 2728193) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 2728195) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (3)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 72529) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)

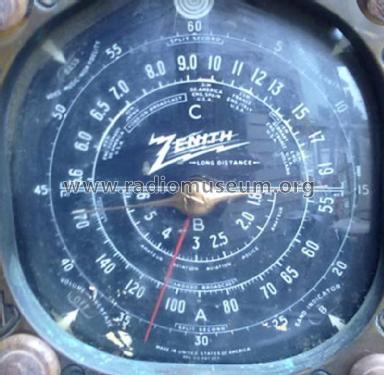

Zenith model 10-S-130 (1936) Copy from Ebay

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 72530) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 72531) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 841751) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
ebay 120637570821 tsmajk

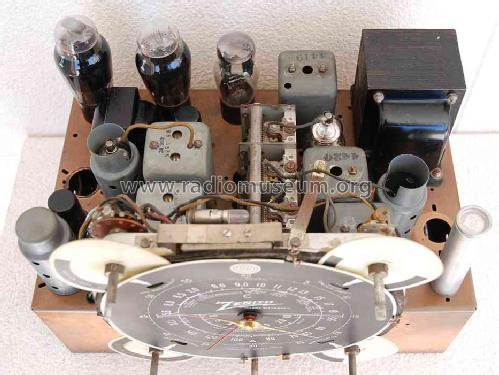

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166142) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166143) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166144) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166145) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166146) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166147) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

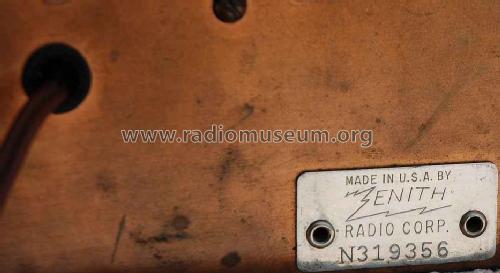

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166148) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166149) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1166152) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227811) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

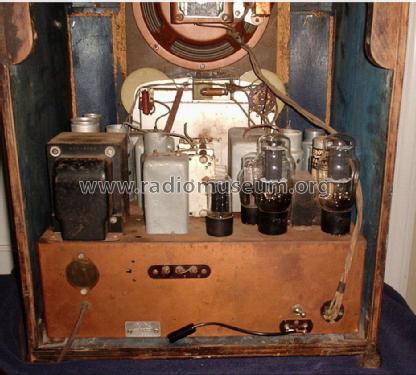

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227812) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227813) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227814) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227815) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1227816) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)
Ebay Seller seabee_12 Item 221009813965

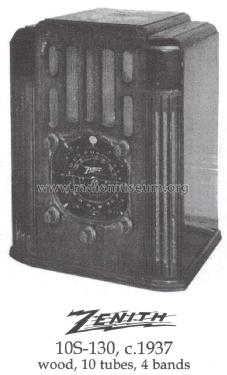

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1486075) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (2)

10S130 Ch= 1004; Zenith Radio Corp.; (ID = 1708810) Radio — Zenith Radio Corp.; 10S130 Ch= 1004 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
10

Valves / Tubes
6K7 6C5 6A8 6K7 6H6 6C5 6C5 6L6 6L6 5W4

Main principle
Superhet with RF-stage; ZF/IF 456 kHz

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

Material
Wooden case

from Radiomuseum.org
Model: 10S130 Ch= 1004 - Zenith Radio Corp.; Chicago,

Shape
Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

Dimensions (WHD)
17 x 22 x 12.2 inch / 432 x 559 x 310 mm

Notes
- Bunis predates by one year. This may be based on Zenith 1937 advertising "Preview of new products" in "Blast of the Past". And usually the season started mostly the previous year to get the X-mas sales.

External source of data
E. Erb 3-907007-36-0

Circuit diagram reference
Rider's Perpetual, Volume 8 = 1937 and before

Mentioned in
Zenith Radio The Glory Years 1936-1945

Literature/Schematics (1)
Table Top Radios Vol. 1 Stein 98 (page 169.)

Literature/Schematics (2)
Cathedral & Tombstone Radios (page 281.)

Other Models
Here you find 4491 models, 4096 with images and 3595 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Zenith Radio Corp.; Chicago, IL

Collections | Museums | Literature

Collections

The model 10S130 is part of the collections of the following members.
