1170 Ch= 5701R Ch= 5702R Ch= 5703R

1170 Ch= 5701R Ch= 5702R Ch= 5703R; Zenith Radio Corp.; (ID = 342154) Radio

1170 Ch= 5701R Ch= 5702R Ch= 5703R; Zenith Radio Corp.; (ID = 342155) Radio

1170 Ch= 5701R Ch= 5702R Ch= 5703R; Zenith Radio Corp.; (ID = 342156) Radio

1170 Ch= 5701R Ch= 5702R Ch= 5703R; Zenith Radio Corp.; (ID = 342157) Radio
Use red slider bar for more.
1170 Ch= 5701R Ch= 5702R Ch= 5703R; Zenith Radio Corp.; (ID = 342154) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6D6 76 6D6 6D6 75 42 80
Main principle Superhet with RF-stage; ZF/IF 252 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 1170 Ch= 5701R Ch= 5702R Ch= 5703R - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with any shape - in general
External source of data Ernst Erb

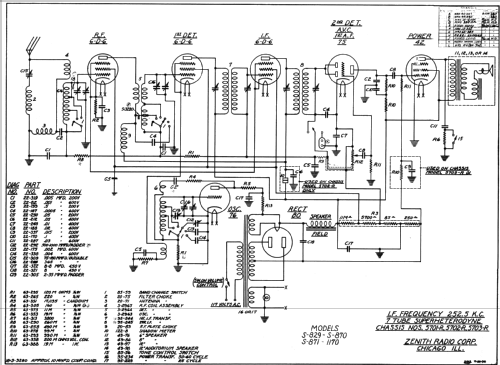

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
