12H094 Ch= 11C21 late

Zenith Radio Corp.; Chicago, IL

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Zenith Radio Corp.; Chicago, IL

Year
1946 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
135975

- alternative name: Chicago Radio Lab

Schematics

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492128) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492129) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492130) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492131) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492155) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492156) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492157) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492158) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 492159) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (3)

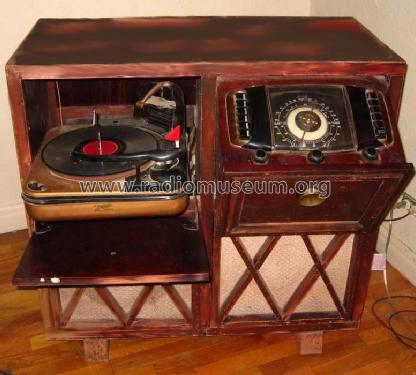

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 515114) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (2)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 709931) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (2)

12H094 Ch= 11C21; Zenith Radio Corp.; (ID = 1521712) Radio — Zenith Radio Corp.; 12H094 Ch= 11C21 (2)
Advertise from 1946

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
6AG5 6SB7Y 6SG7GT 7W7 6AL7GT 6SH7 6S8GT 6J5GT 6V6GT 6V6GT 5Y3GT

Main principle
Superhet with RF-stage; ZF/IF 455/8300 kHz

Wave bands
Broadcast, Short Wave plus FM or UHF.

Details
Changer (Record changer)

Power type and voltage
Alternating Current supply (AC) / 117 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: 12H094 Ch= 11C21 [late] - Zenith Radio Corp.; Chicago,

Shape
Console with any shape - in general

Notes
Operating Frequencies:
BC 540 to 1600kc
SW 9 to 12 mc
FM1 42 to 49 mc
FM2 88 to 108 mc.

Record Changer: Zenith Model S-11680.

Circuit diagram reference
Rider's Perpetual, Volume 15 = 1947 and before

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 2, Folder 462-20)

Author
Model page created by Egon Penker. See "Data change" for further contributors.
